50 x 52 Shouse Barndominium w/ Living Quarters & 5 Car Garage/Shop

Click on the image to open full screen gallery

This 2,656 sq. ft. shouse barndominium merges work and living spaces under one roof, offers a versatile 1,498 sq. ft. shop/garage area, and includes 1 bed & 1 bath functional living quarters.



🏠 🛏 🛁 🚗
2,656 sq. ft. 1 1 4-5
Style: Barndominium, Shouse

Select Your Best Option:

Click "Add to Order" and "Pay Now" to successfully complete the purchase.

Product description

  • This 2,656 sq. ft. floor plan is designed to blend work and living spaces under a single roof, emphasizing an open-concept design and functionality.
  • The design allocates 1,498 sq. ft. to a versatile space flanked by two large roll-up doors. This area can function as a garage, shop, workshop, or even a man cave equipped with a bar, pool table, and a few comfy recliners. And ladies, you can also make it into a she-shed, a very large she-shed.
  • The living area is designed to be simple yet functional, featuring an open layout complemented by a small kitchen island and a pantry.
  • In its original configuration, the plan includes a bathtub with an overhead shower—ideal for those who enjoy unwinding in a hot bath after a long day. However, the option for a larger shower area is also feasible.
  • Given the large size of the garage/shop space, converting a carport into an attractive porch is what you might prefer.
SizeStoriesBedsBathsCars
2,656
sq. ft.
1114-5

Floor Plans

PINCH THE IMAGE TO ZOOM IN

2600 sq. ft. barndominium with shop and carport floor plan
front elevation 2600 barndominium with shop
left elevation 2600 barndominium with shop
right elevation 2600 barndominium with shop
rear elevation 2600 barndominium with shop
Dimensions
Width:50′ 0″
Depth:52′ 0″
Max Ridge Height:16′ 3″
Square Footage
Heated Area:846 sq. ft.
Porch:0 sq. ft.
Carport:312 sq. ft.
Beds & Baths
Bedrooms:1
Full Bathrooms:1
Half Bathrooms:0
Garage/Shop
Type:Attached
Area:1,498 sq. ft.
Capacity:4 – 5 cars
Entrance:Front & back
Foundation Type
Standard Options:slab
Need different foundation?Request modification here
Ceiling Heights
1st Floor Height:10′ 0″
2nd Floor Height:
Exterior Walls
Standard Options:2×6
Roof
Type of Framing:truss
Primary pitch:3 / 12

This plan includes:

  • Cover Sheet
  • Detailed Floor Plans
  • Bathroom Section (detailed side views of bathroom layout)
  • Basic Electrical plan (fixtures, switches, outlets, fans, etc.)
  • Exterior Elevations (detailed front, rear, left & right views)
  • Cross-Sections
  • Roof Plan
  • 3D Renderings
  • Single or Multi License Agreement – allows you to construct single or multiple homes from a purchased plan design, depending on your purchase option.

This plan does NOT include:

  • Architectural or Engineering Stamp
  • Site Plan
  • Foundation plan
  • Window & door schedules
  • Mechanical Drawings (heating, air equipment and duct work locations) – your subcontractors will handle that
  • Plumbing Drawings (septic, plumbing pipe sizes, locations, etc.) – your subcontractors will handle that
  • Energy calculations

A complete set of working drawings is delivered in a PDF and DWG (optional) digital format via email within 1 to 2 business days after purchase. We do not print or ship physical sets of plans, but you can easily do that in your local print shop using the files we provide.

Due to the nature of the products, all sales are FINAL. No returns or exchanges are allowed. Please make certain that you have selected the most suitable floor plan for your needs and that all your questions have been answered before you proceed with the purchase.

Additional information

Select Best Option:

PDF File [Single-Build], PDF File [Unlimited Build], CAD + PDF [Single-Build], CAD + PDF [Unlimited Build]

Complete The Purchase Below

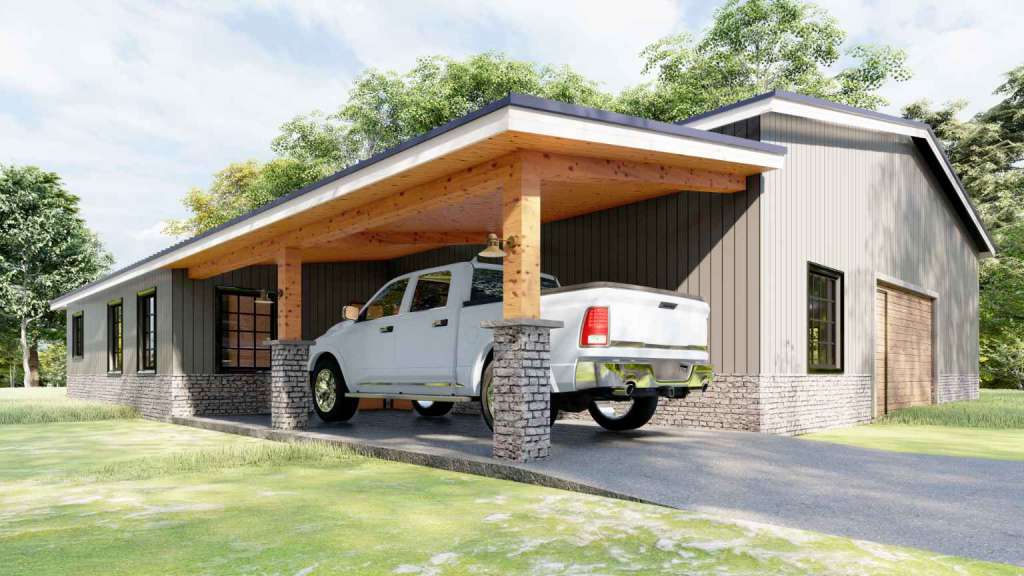

shouse barndominium 2600 close up carport_alt_coloring
