1,442 sq. ft. Stable w/ Functional Living Quarters (Plans & 3D Images)

Click on the image to open full screen gallery

This 2,600 sq. ft. stable with living quarters merges work/hobby and living spaces under one roof. This plan offers four 12×12 stall stables and includes 1 bed & 1 bath functional living quarters.



🏠 🛏 🛁 🐎
2,600 sq. ft. 1 1 4-5
Style: Stable, Barndominium, Metal Building

Select Your Best Option:

Click "Add to Order" and "Pay Now" to successfully complete the purchase.

Product description

  • This floor plan, covering 2,600 sq. ft. (50×52), blends your work/hobby and living spaces under a single roof, emphasizing an open-concept design and functionality. As presented in the gallery, the exterior can be anything you want – with timber, metal or even vinyl siding.
  • The design allocates 1,442 sq. ft. to the stable space, flanked by two large roll-up doors, including four 12×12 stalls with 3×3 windows in each.
  • Although a bold decision, the bedroom includes two windows into the stable area. This is convenient for owners who have a horse injured or with a foal, allowing them to keep a close eye on their animals, even during the night.
  • The living area is designed to be simple yet functional, featuring an open layout complemented by a kitchen with a small island and a pantry.
  • In the plan’s original configuration, it includes a bathtub with an overhead shower—ideal for those who enjoy unwinding in a hot bath after a long day.
  • Although the original plan does not include a porch, you can effortlessly add one wherever you see fit.
  • This building can be built on a post-frame or a metal frame.
SizeStoriesBedsBathsStable
2,600
sq. ft.
1111,442
sq. ft.

Floor Plans

PINCH THE IMAGE TO ZOOM IN

2600 sq.ft. stable living quarters 133701HBM floor plan

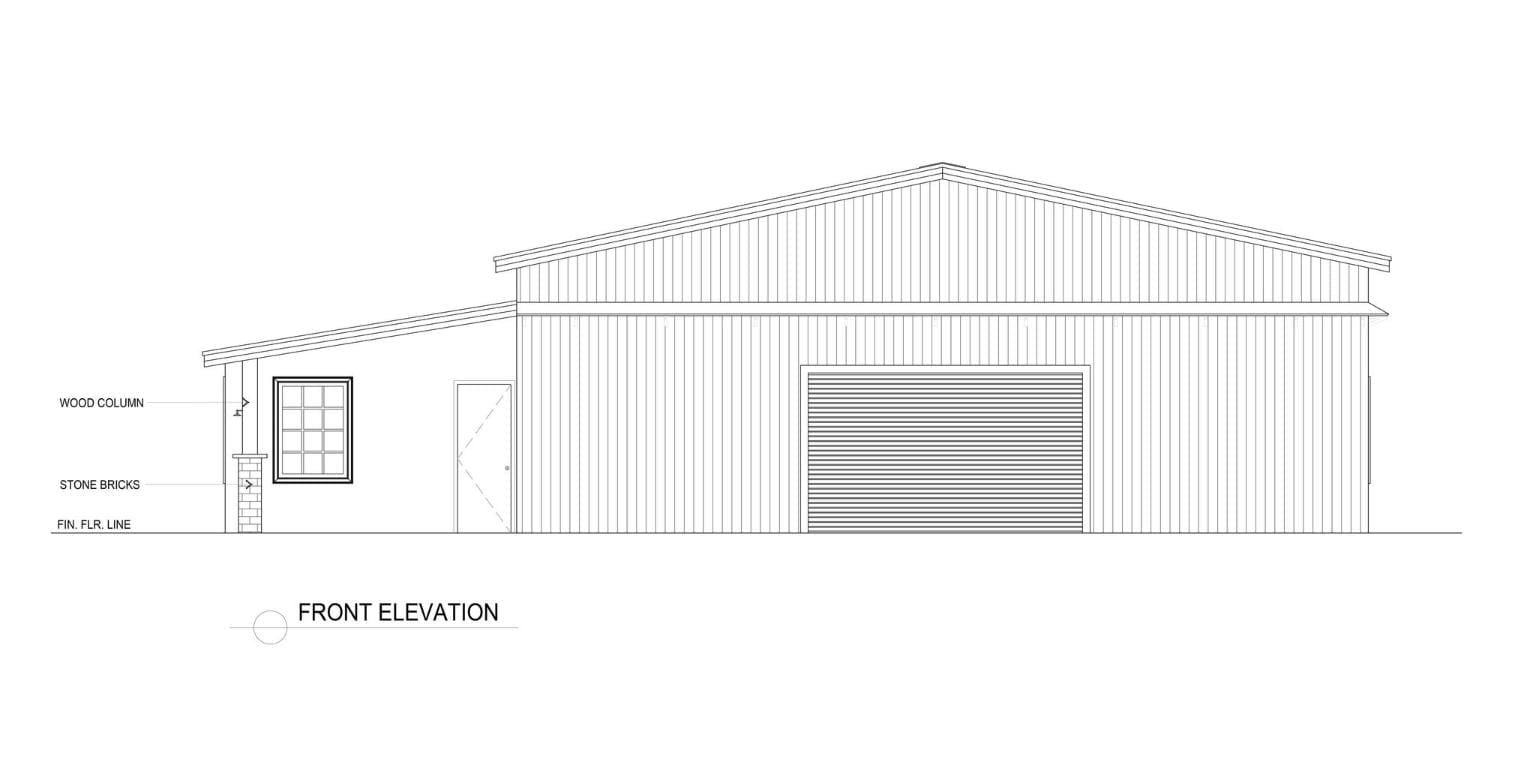

2600 sq.ft. stable living quarters front_elevation_133701HBM

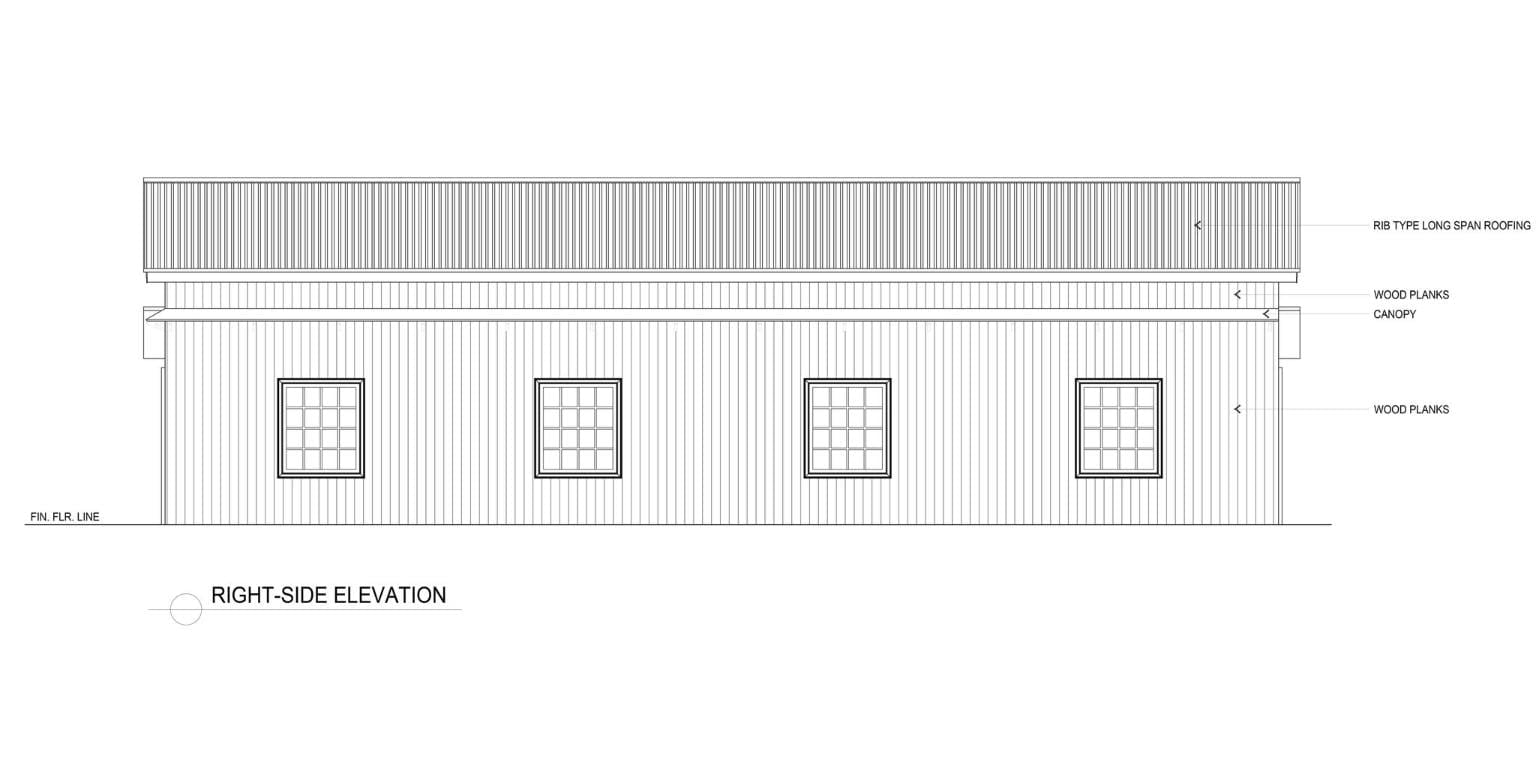

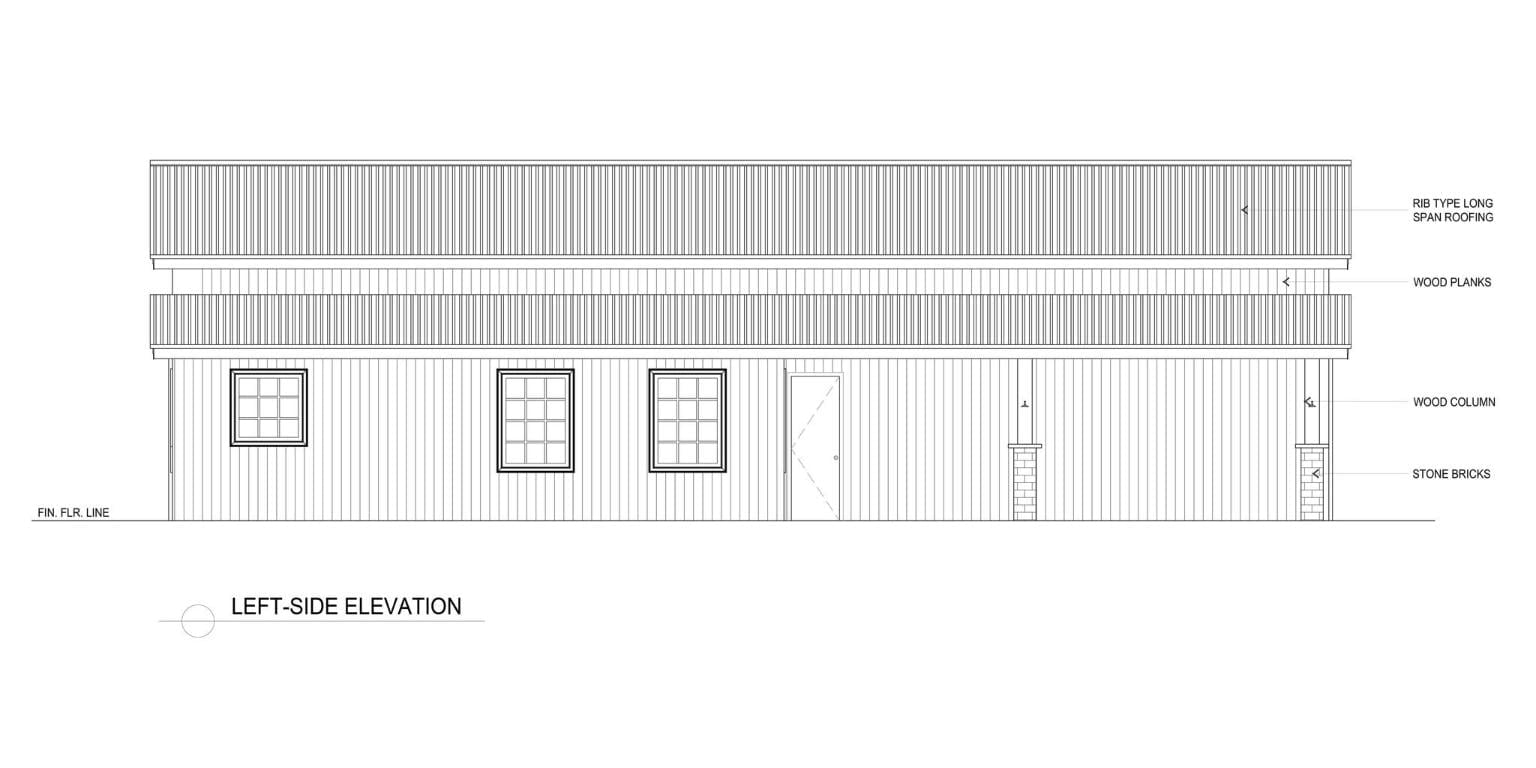

2600 sq.ft. stable living quarters left_elevation_133701HBM
2600 sq.ft. stable living quarters rear_elevation_133701HBM
Dimensions
Width:50′ 0″
Depth:52′ 0″
Max Ridge Height:16′ 3″
Square Footage
Heated Area:846 sq. ft.
Porch:0 sq. ft.
Carport:312 sq. ft.
Beds & Baths
Bedrooms:1
Full Bathrooms:1
Half Bathrooms:0
Stable
Type:Attached
Area:1,442 sq. ft.
Capacity:4 stalls 12×12
Entrance:Front & back
Foundation Type
Standard Options:slab
Need different foundation?Request modification here
Ceiling Heights
1st Floor Height:10′ 0″
2nd Floor Height:
Exterior Walls
Standard Options:2×6
Roof
Type of Framing:truss
Primary pitch:3 / 12

This plan includes:

  • Cover Sheet
  • Detailed Floor Plans
  • Bathroom Section (detailed side views of bathroom layout)
  • Basic Electrical plan (fixtures, switches, outlets, fans, etc.)
  • Exterior Elevations (detailed front, rear, left & right views)
  • Cross-Sections
  • Roof Plan
  • 3D Renderings
  • Single or Multi License Agreement – allows you to construct single or multiple homes from a purchased plan design, depending on your purchase option.

This plan does NOT include:

  • Architectural or Engineering Stamp
  • Site Plan
  • Foundation plan
  • Window & door schedules
  • Mechanical Drawings (heating, air equipment and duct work locations) – your subcontractors will handle that
  • Plumbing Drawings (septic, plumbing pipe sizes, locations, etc.) – your subcontractors will handle that
  • Energy calculations

A complete set of working drawings is delivered in a PDF and DWG (optional) digital format via email within 1 to 2 business days after purchase. We do not print or ship physical sets of plans, but you can easily do that in your local print shop using the files we provide.

Due to the nature of the products, all sales are FINAL. No returns or exchanges are allowed. Please make certain that you have selected the most suitable floor plan for your needs and that all your questions have been answered before you proceed with the purchase.

Additional information

Select Best Option:

PDF File [Single-Build], PDF File [Unlimited Build], CAD + PDF [Single-Build], CAD + PDF [Unlimited Build]

Complete The Purchase Below

133701HBM metal building barndominium stable 2600 sq. ft. with living quarters timber siding front view

Select Your Best Option:

Make sure to add this plan to the cart by clicking "Add to Order" above before proceeding further.

Billing details

Additional information

Your order

Product
Quantity
Total
Cart Subtotal $0
Order Total $0
