3-Bed Open Concept Barndominium with Indoor & Outdoor Fireplaces | Plan 31122AZ

Sale!

3-Bed Open Concept Barndominium with Indoor & Outdoor Fireplaces | Plan 31122AZ

$85.00 – $1,595.00

Heated S.F.
2301
STORIES
1
beds
3
baths
2
cars
3
Plan number:
31122AZ

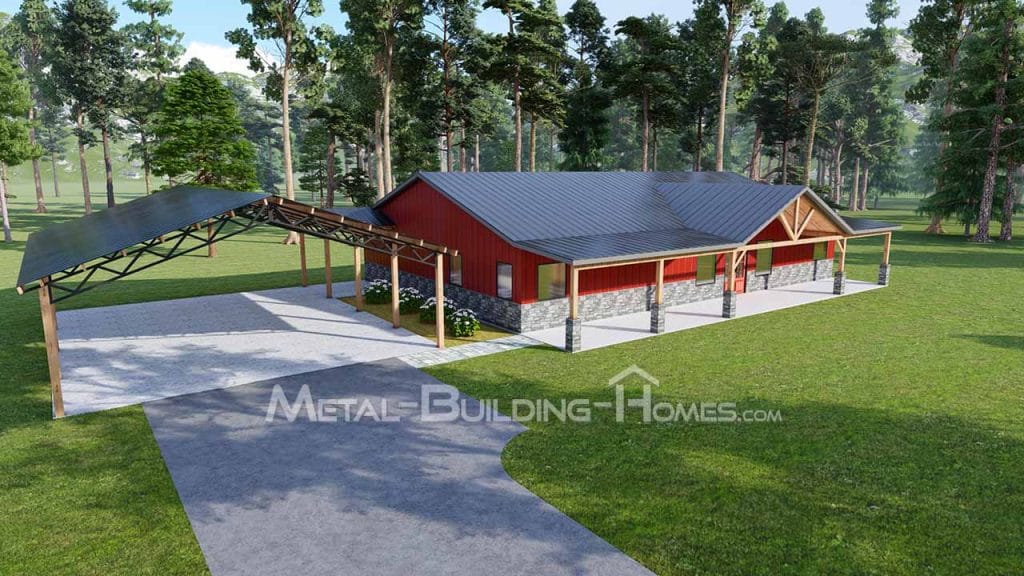

Single-story, 2,301 sq. ft. (60′ x 40′) barndominium with an open-concept layout, cozy living room with fireplace, spacious kitchen with island and pantry, plus a 30′ x 40′ carport for three vehicles connected by a breezeway.

MODIFY THIS PLAN BUILDING COST QUOTE
  • Single-story barndominium with 2,301 square feet of living space (60′ x 40′), featuring an open-concept design with a cozy living room, fireplace, and seamless flow to the dining area and kitchen with a large island and pantry with ample storage.
  • A 30′ x 40′ carport with space for three vehicles, accessible via a breezeway.
  • Master suite with a luxurious bathroom, walk-in closet, and access to a safe room, plus two additional bedrooms with shared bathroom access.
  • This barndo has a dedicated home office, in addition to the butler’s pantry and a laundry room conveniently connected to the breezeway and carport.
  • Outside you can relax in front and rear porches, including a 20′ x 20′ rear porch with a fireplace for grilling and entertaining in any weather.
Heated S.F.
2301
STORIES
1
beds
3
baths
2
cars
3
Plan number:
31122AZ

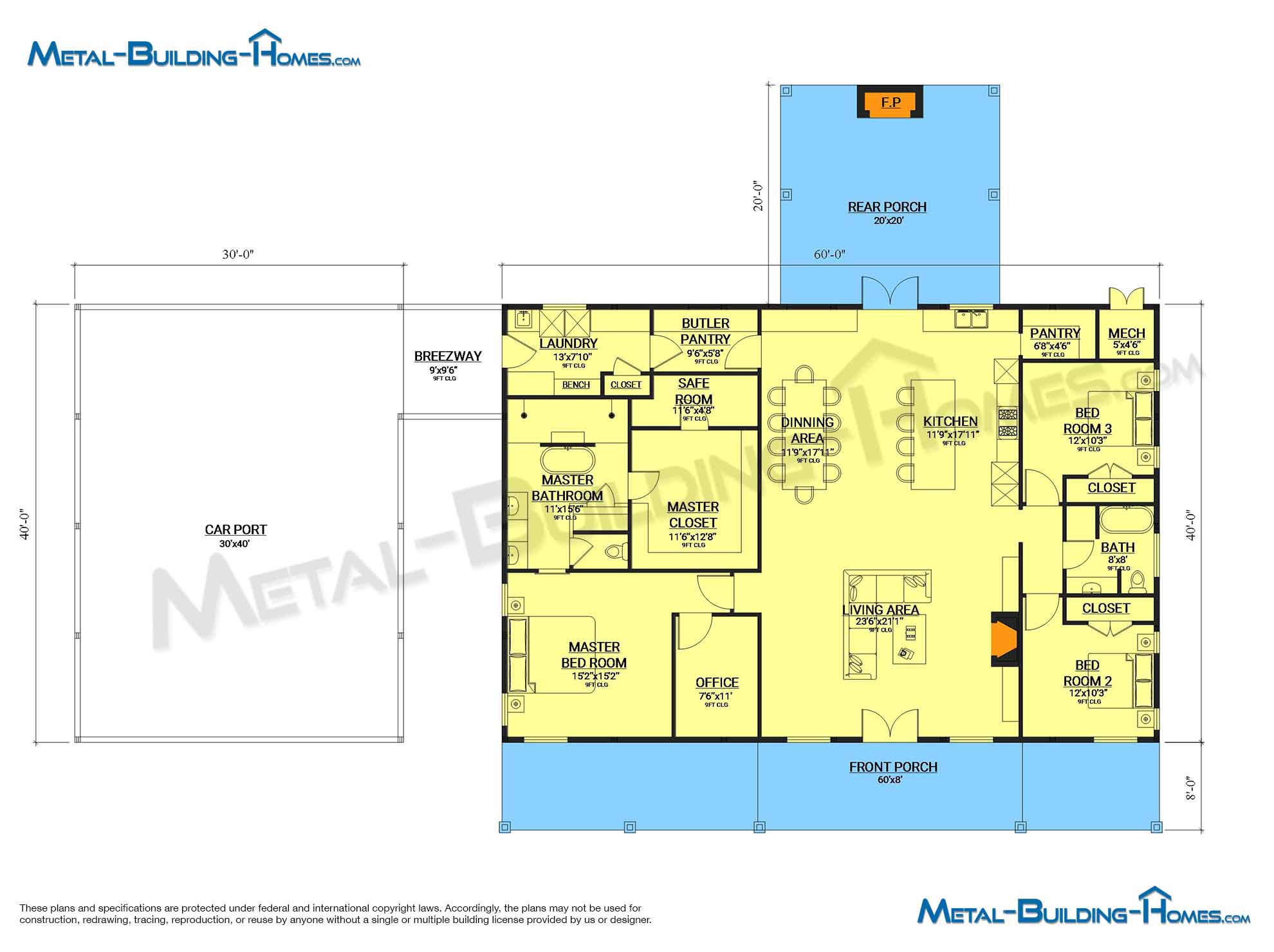

Floor Plans

PINCH THE IMAGE TO ZOOM IN
Dimensions
Width:60′
Depth:40′
Max Ridge Height:15’8″
Square Footage
Heated Area:2301 sq. ft.
Porch:862 sq. ft.
Carport:1221 sq. ft.
Floors Footage
Basement:optional
First floor:2301 sq. ft.
Second floor:0 sq. ft.
Beds & Baths
Bedrooms:3
Full Bathrooms:2
Half Bathrooms:0
Garage/Shop
Type:none
Area:0 sq. ft.
Capacity:0 cars
Entrance:none
Foundation Type
Standard Options:slab
Need different foundation?Request modification here
Ceiling Heights
1st Floor Height:9′ 0″
2nd Floor Height:
Exterior Walls
Standard Options:2×6 framing
Thickness9″
Roof
Type of Framing:truss
Primary pitch:4 / 12
Garage pitch: none

Starter Pack includes:

  • 11″ x 17′ PDF with:
  • Cover Sheet
  • Detailed Floor Plans
  • Exterior Elevations (detailed front, rear, left & right views)
  • NO LICENSE to build, reproduce, or recreate this plan.

Full set of plans includes:

  • Cover Sheet
  • Detailed Floor Plans + Window & Door Schedules
  • Foundation plan
  • Exterior Elevations (detailed front, rear, left & right views)
  • Basic Electrical plan (fixtures, switches, outlets, fans, etc.)
  • Basic Plumbing Plan
  • Cross-section(s)
  • Roof Plan
  • Single or Multi License Agreement – allows you to construct single or multiple homes from a purchased plan design, depending on your purchase option.

This plan does NOT include:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (heating, air equipment and duct work locations) – your subcontractors will handle that
  • Energy calculations

A complete set of working drawings is delivered in a PDF and DWG (optional) digital format via email 1 to 2 business days after purchase. We do not print or ship physical sets of plans, but you can easily do that in your local print shop using the files we provide.

Due to the nature of the products, all sales are FINAL. No returns or exchanges are allowed. Please make certain that you have selected the most suitable floor plan for your needs and that all your questions have been answered before you proceed with the purchase.

Complete The Purchase Below​

Heated S.F.
2301
STORIES
1
beds
3
baths
2
cars
3

Free Building Cost Quote​

To get a free quote for building this or any floor plan, just fill in the details below, enter the dimensions of the building (“Specifications” tab above) and up to 6 local contractors will contact you and offer their pricing. Make sure to bookmark this plan and show it to them for the most accurate quotes. Oh, and don’t forget to bargain!

Custom Modifications Request​

To receive your free modification quote within 2 to 4 business days take these steps:

  1. Print out this plan
  2. Redline the changes (i.e. add porch, erase a wall, move doors, etc.)
  3. Scan/photograph it in good quality (ideally in color) and attach to the form below
  4. Describe modifications in detail below (i.e. expand bedroom by 3′; add 4′ x 12′ front porch; etc.)
  5. Submit the form below and check your inbox in 2 to 4 business days.
